Dielectric Mirrors are coated with dielectric High reflectivity coating, their reflectivity are higher than metal mirrors. Usually they can be used in laser system with high energy reflecting.

Specifications:

Material:--------------------------- -N-BK7, UV Fused silica etc.

Typical Diameter (Фmm):------ 10.0, 12.7, 15.0, 20.0, 25.4, 30.0, 50.8, etc.
Diameter Tolerance: ----------- +/ -0.1mm
Thickness Tolerance: -------- ±0.2mm
Clear Aperture: ------------------->80%
Parallelism: ---------------------- 3'(Standard), 1’(High Precision)
Surface Quality: ----------------- 60/40(Standard), 10/5(High Precision)
Flatness( per 25mm @633mm): ----------λ/4((Standard), λ/8(High Precision)
Bevel: ------------------------------ <0.25mm x 45deg
Coating: --------------------------HR @ design wavelength just on one surface, with AOI=0deg or 45deg

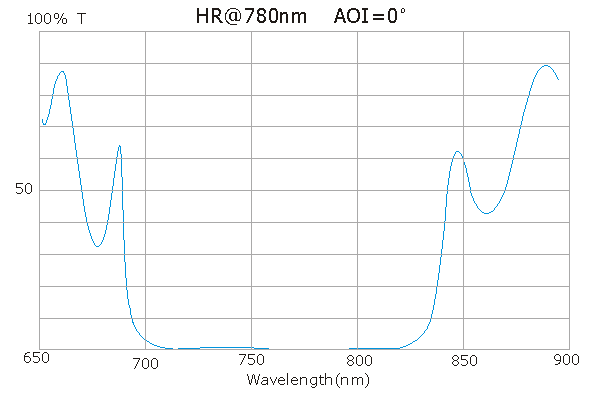

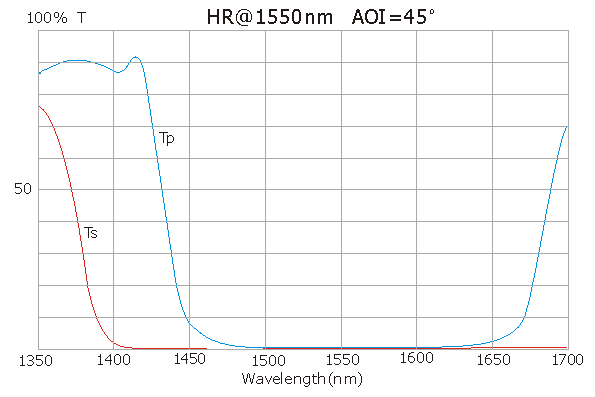

Coating Examples:
